The Self Piercing Rivet Guns by C.M.O are part of the OEM recommended method of joining aluminum panels on removing rivets.

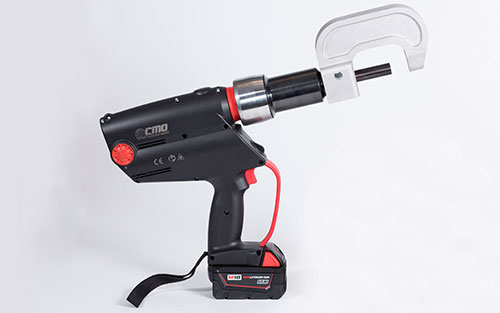

CMO Eletro-Hydraulic Self-Piercing Rivet Gun RV EP-02

FORD: APPROVED
Equipped Standard with: SPRG, case, universal dies, USB cable, battery,

battery charger, 40mm arm and software.

FEATURES:

  • Portable and light weight 4.8Kg / 10.5 lbs.
  • Powered by one Li-Ion Battery (18 VDC. 3.0Ah).
  • Low power failsafe.
  • Adjustable KN insertion force capable (20KN to 85KN).
  • Adjustable return time.
  • Wide range of C arms available (43mm to 240mm).
  • Riveting data download capability.
  • Pump motor with permanent magnets in continuous current.
  • Operating electronic pressure sensor
  • Uses Hydraulic oil ISO 15.
  • Very quiet. Less than 70dB at 1 mt. (3 ft.) distance.

OPTIONAL ACCESSORIES: 130 x 80mm arms, 240 x 140 arms, FORD Die kit

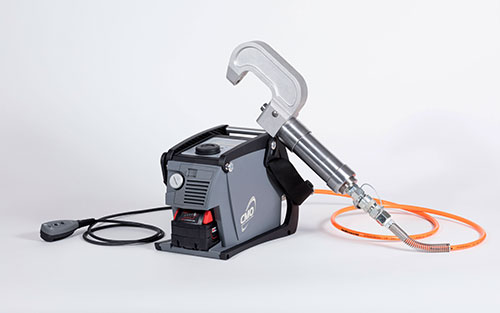

CMO Hydraulic Self-Piercing Rivet Gun RV700

FORD, ASTON MARTIN, JAGUAR, LANDROVER: APPROVED

Equipped standard with: RV700 unit, RV 91Arm[.’ (40mm), one battery, battery

charger, set of dies, software, hydraulic hose, USB cable, remote activator control

FEATURES:

  • 90Kn push-pull force
  • Adjustable kN insertion force capabilities
  • Remote control actuator with operator LED ON/forward, release button
  • USB 2.0 cable for software upgrades and downloading riveting report for accountability.
  • Pump motor with permanent magnets in continuous current.
  • Operating electronic pressure sensor
  • Uses Hydraulic oil ISO 15max 750ml
  • Portable and easy to carry. Light weight: 5 kg (11 lbs.) pump unit. 5 kg (11 lbs.) C-arm RV91
  • Very quiet. Less than 70dB at 1 mt. (3 ft.) distance.
  • Li-ION battery operated
  • Low power Fail-safe

OPTIONAL ACCESSORIES:130-80mmArms, 240-140 arms, FORD Die kit, RVMR blind rivet attachment, RVMB nut riveter attachment, Electrical power mains transformer to replace battery pack.
