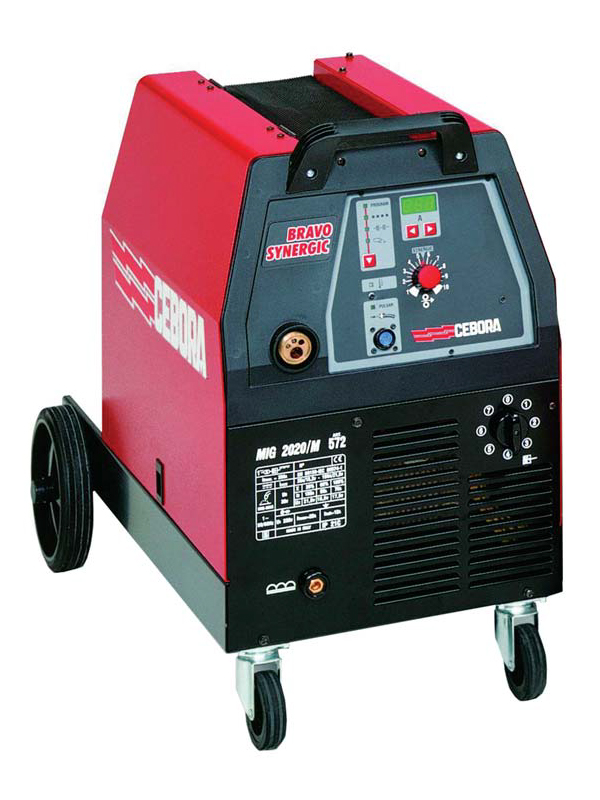

572 Synergic Mig Welder

Phase mig welder with output power ranging from 25 amps to 200 amps. Designed and developed for today’s collision repair shop, the Synergic Mig 572 is supplied with built-in synergic programs for welding high strength steels, MIG brazing and galvanized steel. This welder is capable of welding aluminum with trouble free wire feed when using the optional Push-Pull gun #2003. The built in programs may be updated easily via the internet by using the optional Interface Kit #136.

Technical DATA:

• 220 volt single phase@ 40 amps 50/60 Hz
• Output power: 25 – 200 amps
• Duty Cycle 25% @ 150 amps 100% @ 70 amps
• Mig Gun is sold separately. Uses Standard gun MB15, Heavy Duty 1242 or Push Pull Gun 2003
• Power cord 8″ (2.5 m)
• Ground cable 9′ (3 m)
• Dimensions: 21″ x 33″ X 26″
• Weight: 112 lbs. (51 kg)

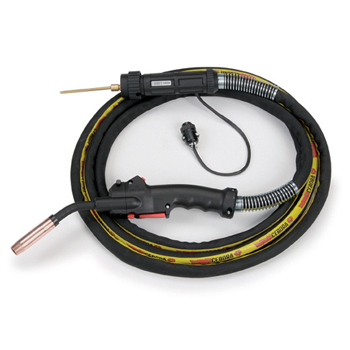

Push Pull Gun ART: 2003

• No bulky spool-gun. Wire feed motor built into hand grip.
• Control the current up or down from the handle. On the fly.
• Feeds all solid wires with diameter of 0.6, 0.8 and 1.0.
• Especially suited for aluminum welding.

Heavy Duty Mig Gun ART: 1242

• 280 amps- 9 ft. – steel liner, ergonomic handle, Euro quick connect.

Stand Mig Welding Gun ART: MB15 (not pictured)

• Air-cooled
• Capacity 180 amp with CO2, 150amp mixed gases.
• 60% duty cycle
• Wire Sizes: .023” (0.6mm) through .035” (.09mm)
• Weight: 32.2 oz.
• Length: 10 ft.
