344 Inverter Double Pulse/ Double Torch 270 amp – 3-phase Mig

Ideal for fabrication shops, and body shops doing structural repairs on today’s cars. Built-in welding programs makes it quick and easy to set up the welder for aluminum repairs as well as mig brazing of galvanized steel panels

  • Three important specific functions dedicated for optimal aluminum welding (3 levels, Automatic Hot Start, Automatic Crater Filler)
  • Steel, Stainless Steel and  Mig brazing  metals using the heavy duty mig gun art:1242  ( sold separately)
    Aluminum welding without wire feed hang ups with the Push-Pull Gun art. 2003 Mig Brazing for Galvanized steel ( sold separately)
  • Easy set-up with 75   preset welding programs.
  • Step-less electronic controls
  • Easy to read LCD display
  • Download program updates to keep your welder current to the newest welding programs.
  • OEM Approved
  • Uses optional heavy duty torch art 1242 and/or Push-Pull Gun art 2003
  •  Highest quality MADE IN ITALY

>20-270 AMPS  220 / 480V volt 3 –phase 50/60 Hz
>Output power 270 amps @20% duty cycle, 180 amp @100% duty cycle.
>Weight 167 lbs mounted on heavy duty wheels & casters. Dimensions: 23W x 37 L x 39H

>Wire capacity:.8-.9-1.0-1.2  Aluminum  / .6 .8 .9  1.0  1.2 steel     .8 .9  1.0  1.2 Stainless Steel  .8  .9 1.0 SilBrz          Up to  11 lbs reels

ART 1242  Heavy Duty Mig Torch 280 amps , 9 ft, steel liner, ergonomic handle and quick euro connect.

ART:2003 PUSH- PULL gun for Aluminum Welding

Wire feed motor built into hand grip, No bulky spool-gun.
• Control the Amps up or down from the handle. On the fly.
• Feeds all solid wires with diameter of 0.6, 0.8 and 1.0.
• Especially suited for aluminum welding.

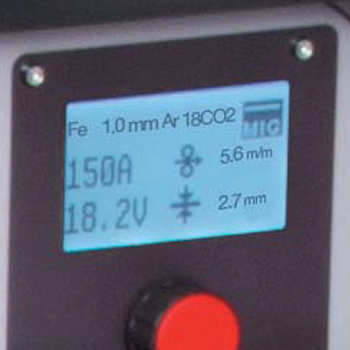

322 Display

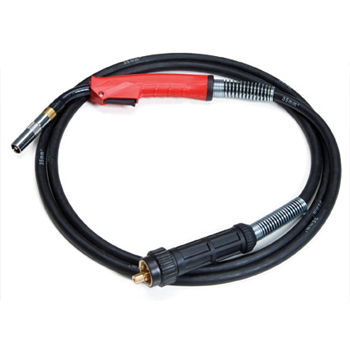

Art-1242 Heavy duty torch for 322

Art-2003 push pull torch for 322
